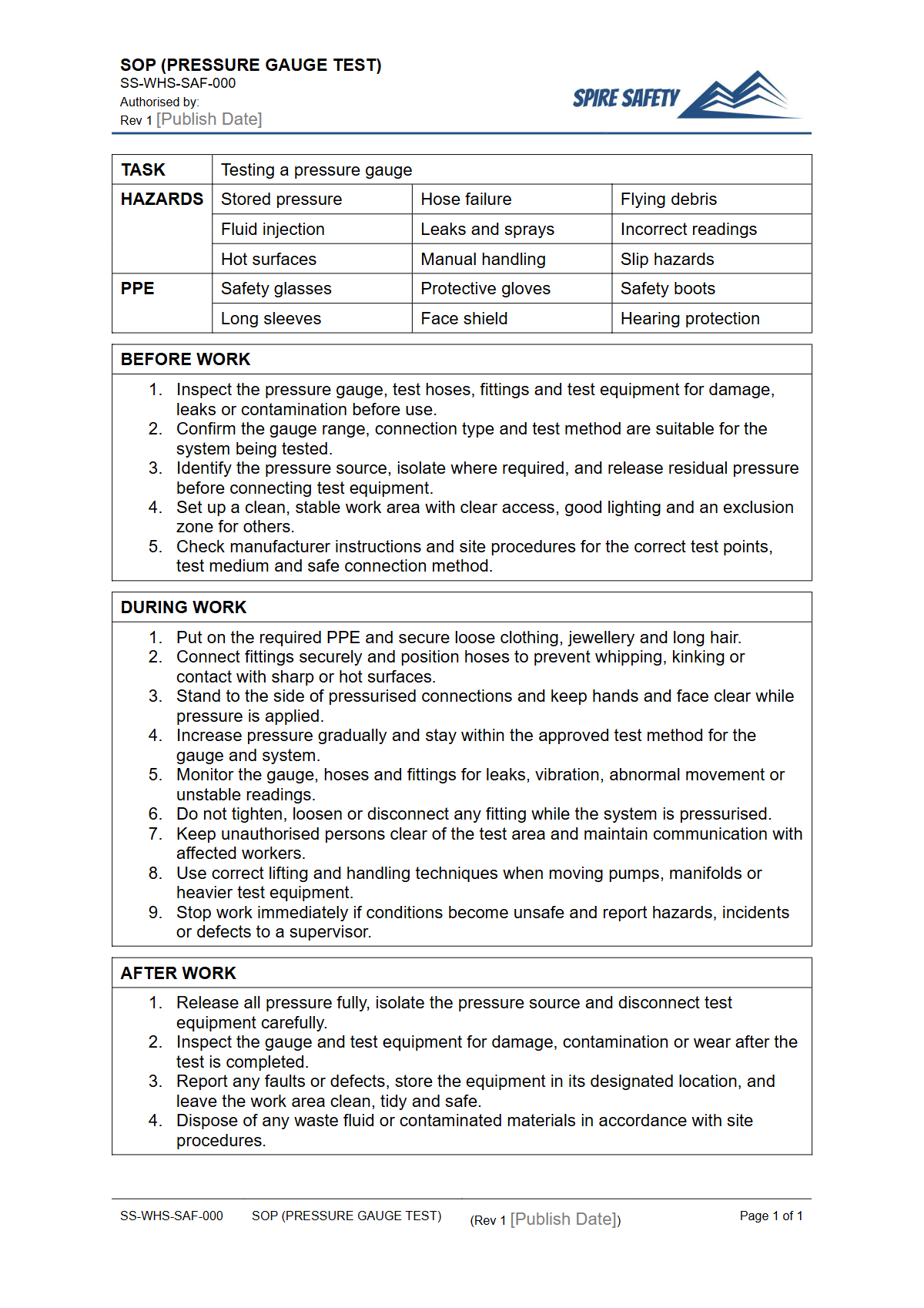

Free Safe Operating Procedure (Pressure Gauge Test) Template

Purpose of the Free Safe Operating Procedure (Pressure Gauge Test) Template

Pressure systems contain significant stored energy, and a faulty gauge can lead to catastrophic equipment failure, dangerous pressure releases, or incorrect process outcomes. This Free Safe Operating Procedure (Pressure Gauge Test) Template provides a structured starting point for organisations to document a consistent, safe, and repeatable method for testing and calibrating pressure gauges.

Using a formal SOP helps control hazards associated with pressurised systems, ensures measurement accuracy, and demonstrates due diligence in managing workplace risks. A well-defined procedure is a fundamental part of maintaining a safe system of work.

This template is designed to guide qualified personnel through the critical steps of preparation, isolation, testing, and reinstatement. It helps ensure that workers are aware of the risks, such as unexpected energy release, and follow the correct control measures.

Implementing this SOP can reduce the likelihood of incidents, improve equipment reliability, and form a key part of your training material for technicians and maintenance staff. A procedure for testing gauges on compressed air systems might be supplemented by a specific Free Air Compressor SOP (Safe Operating Procedure) Template to cover the entire system.

How to use the Free Safe Operating Procedure (Pressure Gauge Test) Template

This document is a template, not a finished procedure. To use it effectively, download the DOCX file and adapt it to your specific workplace.

You will need to insert your company name, ABN, and other details. Most importantly, you must review and modify the steps, hazards, and controls to reflect the actual pressure gauges, test equipment, and pressurised systems used at your site.

Different types of gauges (e.g., hydraulic, pneumatic, digital) and different media (e.g., air, water, oil, steam) will require specific safety precautions.

Important: This is a generic template that you must customise. We have written the procedure with common steps and hazards in mind, but you are responsible for ensuring the final document is accurate and relevant to your operations, equipment, and legal obligations under WHS Regulations.

A generic document cannot account for every site-specific variable. Failure to customise this SOP could lead to an unsafe process and expose your workers to risk.

When to use a Pressure Gauge Test SOP

A Safe Operating Procedure for pressure gauge testing should be used consistently in several situations to ensure ongoing safety and accuracy:

• Routine Calibration and Verification: As part of a scheduled maintenance program, where gauges are tested at set intervals (e.g., annually, semi-annually) to verify their accuracy against a master gauge.
• Pre-Use on Critical Systems: Before commissioning new equipment or returning critical systems to service after major maintenance.
• Post-Incident Investigation: When a process failure or safety incident occurs, testing relevant gauges can be a key step in determining the root cause.
• Training and Competency Assessment: This SOP serves as an essential training document for new maintenance personnel and a basis for assessing the competency of existing workers.

Integrating this procedure into your overarching WHS management systems ensures it is consistently applied, reviewed, and updated as part of your continuous improvement cycle.

Who should use this Safe Operating Procedure

This SOP is intended for use by personnel who are trained, competent, and authorised to work on pressurised systems. This typically includes:

• Maintenance Fitters and Technicians
• Instrumentation and Control Specialists
• Qualified Plumbers or Gasfitters
• Supervisors overseeing maintenance activities
• WHS Managers developing and reviewing safety systems

It is not intended for untrained or inexperienced workers. The person performing the test must understand the principles of pressure, the specific hazards of the system they are working on, and be skilled in the use of the test equipment.

Like other procedural documents such as a FREE Conveyer System SOP, it assumes a baseline level of user competence.

Key Elements of a Pressure Gauge Test SOP

A robust pressure gauge testing SOP should clearly outline several key phases of the task. The pre-start check section should detail visual inspections of the gauge for damage (e.g., cracked lens, bent needle) and confirmation that the test equipment is in good condition and within its calibration period.

The core of the procedure focuses on safely isolating the gauge from system pressure. This involves identifying and using the correct isolation valves, followed by a controlled bleed-down to ensure all trapped pressure is released before any fittings are loosened.

Your procedure must be audited to ensure it is being followed correctly as part of any WHS compliance auditing program.

The procedure should then detail the step-by-step process of connecting the gauge to a test manifold alongside a calibrated master gauge. It should specify the points at which readings should be taken (e.g., at 25%, 50%, 75%, and 100% of the gauge's range, both on increasing and decreasing pressure) and define the acceptable tolerance for a pass/fail result.

Finally, it must cover post-test actions: documenting the results on a calibration record, applying a 'pass' or 'fail' tag to the gauge, and the correct procedure for reinstating the gauge or replacing it if it fails the test. You can find more examples of procedural documents in our free WHS resources library.
