Free Safe Operating Procedure (Insulation Tester) Template

Purpose of the Free Safe Operating Procedure (Insulation Tester) Template

Using an insulation tester, also known as a megohmmeter, involves potentially hazardous high DC voltages. A structured Safe Operating Procedure (SOP) is essential for managing the risks of electric shock, arc flash, and equipment damage.

This free Safe Operating Procedure (Insulation Tester) template provides a documented, step-by-step guide for workers to follow, ensuring tasks are performed safely and consistently every time.

By implementing a clear SOP, your organisation can demonstrate a commitment to electrical safety, standardise training, and minimise the likelihood of incidents. Formal procedures are a critical component of any robust WHS management system, helping to fulfil the primary duty of care owed to workers under Australian WHS legislation.

How to use the Free Safe Operating Procedure (Insulation Tester) Template

This template is a comprehensive starting point, not a finished document. To make it effective for your workplace, you must customise it with site-specific information.

Follow these steps:

• Download: Get the template in your preferred format (DOCX for easy editing or PDF).
• Customise: Insert details specific to your organisation. This includes the exact make and model of your insulation testers, the types of equipment being tested, specific PPE requirements based on your risk assessment, and your unique emergency procedures and contacts.
• Consult: Discuss the draft procedure with the workers who will be using it. Their practical experience is invaluable for creating a procedure that is both safe and workable. This consultation is a key requirement of WHS laws.
• Approve & Train: Once finalised, have the SOP approved by a manager or supervisor. Ensure all relevant personnel are thoroughly trained on the procedure before they are authorised to use an insulation tester. Keep records of this training.

Important: We have created this template as a guide. You must adapt it to the specific hazards and control measures relevant to your individual workplace, equipment, and tasks.

If you need assistance with this process, our WHS consulting team can provide expert support.

When to Use an Insulation Tester SOP

A Safe Operating Procedure for an insulation tester should be used as a primary reference document in several key situations. It forms the basis of initial training for new or inexperienced electricians and apprentices, ensuring they learn the correct, safe method from the start.

It should also be readily accessible in the workplace for operators to refer to before commencing any insulation resistance test.

Furthermore, the SOP is a valuable tool for conducting refresher training and toolbox talks on electrical safety. In the unfortunate event of an incident or near miss involving an insulation tester, the procedure serves as a benchmark for the investigation process, helping to identify any deviations from the established safe work method.

It provides a consistent standard, much like our Free Air Compressor SOP Template does for pneumatic equipment.

Who Should Use This SOP

This SOP is intended for use by competent and authorised personnel. This primarily includes licensed electricians and qualified electrical workers who have the necessary training and experience to understand electrical principles and hazards.

Apprentices or trainees should only use an insulation tester under the direct supervision of a qualified person who can guide them through the procedure.

Supervisors and WHS managers will also use the document to verify that work is being performed correctly and to conduct workplace inspections. A documented SOP is a key piece of evidence during safety reviews or a formal WHS compliance audit, demonstrating that a safe system of work has been established and communicated.

Just as you would have a specific procedure for power tools, such as the one in our FREE Circular Saw SOP Template, a dedicated SOP for specialised testing equipment is crucial.

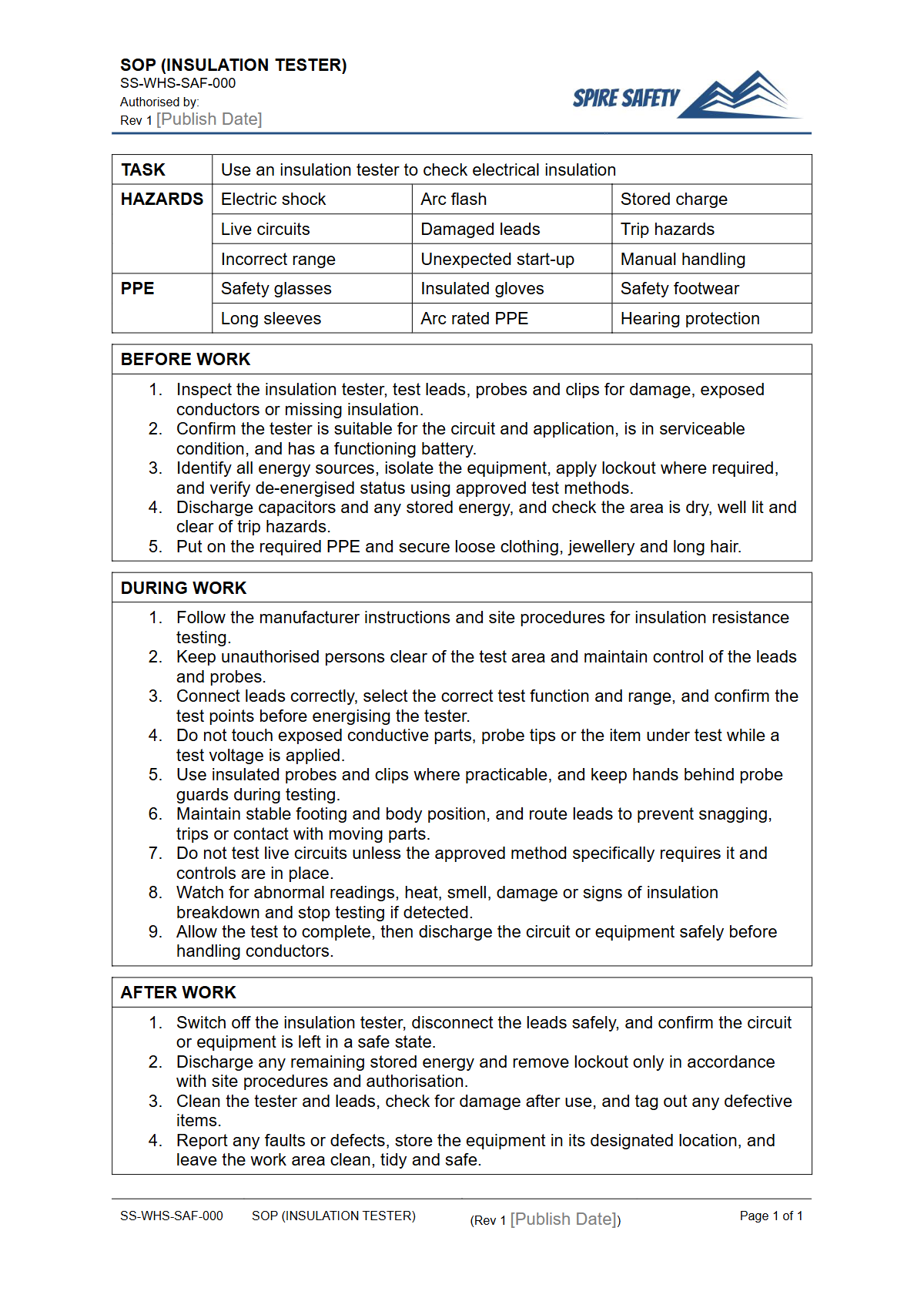

Key Elements Covered in the Template

This downloadable SOP provides a structured framework covering the full work cycle to ensure safety at every stage. Key sections include:

• Associated Risks and Hazards: Identifies potential dangers such as electric shock, burns, arc flash, and equipment damage.
• Required Personal Protective Equipment (PPE): A customisable list for items like insulated gloves, eye protection, and insulated footwear.
• Pre-Operational Checks: Steps to verify the tester, leads, and work area are safe before starting. This includes checking for valid calibration.
• Step-by-Step Operating Procedure: Detailed instructions for connecting, testing, and safely disconnecting the insulation tester.
• Post-Operational Tasks: Procedures for safely discharging the circuit/equipment, cleaning, and storing the tester.

This template is just one of many professionally developed documents available in our free WHS resources library, designed to help Australian businesses improve their safety management.
